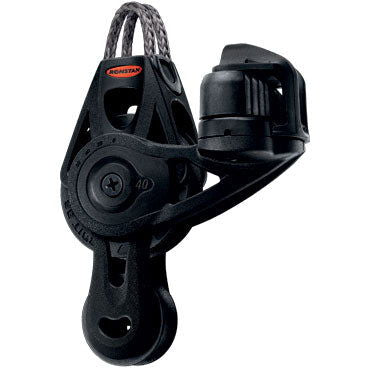

Series 40 Orbit Block

Great to have you back!

Don’t have an account?Register now

Home Series 40 Orbit Block

Series 40 Orbit Block

$106.53

FEATURES Ultra Lightweight Low friction 2-stage Orbital ball bearing system Highest working load in its class Low profile and compact High performance cleating Composite C-Cleat and fairlead Convert to a becket version by adding a Dyneema® link Lightweight Kilogram for kilogram of working load, BB and RT Orbit Blocks™ are...

Ask a Question

Dresses Size Chart

Dress Size Chart (Inch)

DRESSES SIZE IN INCHES
SIZE	US / CAN	BUST	WAIST	HIPS
XS	0	31"-32"	24"-25"	34"-35"
S	2-4	33"-34"	26"-27"	36"-37"
M	6-8	35"-36"	28"-29"	38"-39"
L	10-12	37"-39"	30"-32"	40"-42"
XL	14	40"-42"	33"-35"	43"-45"

Dress Size Chart (cm)

DRESSES SIZE IN CM
SIZE	US / CAN	BUST	WAIST	HIPS
XS	0	78.7-81.2	60.9-63.5	86.3-88.9
S	2-4	83.8-86.3	66-68.5	91.4-93.9
M	6-8	88.9-91.4	71.1-73.6	96.5-99
L	10-12	93.9-99	76.2-81.2	101.6-106.6
XL	14	101.6-106.6	81.2-88.9	109.2-114.3

Swimwear Size Chart

Dress Size Chart (Inch)

SWIMWEAR SIZE IN INCHES
SIZE	US / CAN	BUST	WAIST	HIPS
XS	0	31"-32"	24"-25"	33"-34"
S	2	33"-34"	26"-27"	35"-37"
M	4	35"-36"	28"-29"	37"-38"
L	6	37"-39"	30"-32"	39"-41"
XL	8	40"-42"	33"-35"	42"-44"

Shoes Size Chart

US	EURO	UK	AUS	JAPAN	CHINA
5	35-36	3	3.5	21.5	35
5.5	36	3.5	4	22	35.5
6	36-37	4	4.5	22.5	36
6.5	37	4.5	5	23	36.5
7	37-38	5	5.5	23.5	37
7.5	38	5.5	6	24	37.5
8	38-39	6	6.5	24.5	38
8.5	39	6.5	7	25	38.5
9	39-40	7	7.5	25.5	39
9.5	40	7.5	8	26	39.5
10	40-41	8	8.5	26.5	40
11	41-42	9	9.5	27.5	41

Delivery

All orders shipped with UPS Express.

Always free shipping for orders over US $250.

All orders are shipped with a UPS tracking number.

Returns

Items returned within 14 days of their original shipment date in same as new condition will be eligible for a full refund or store credit.

Refunds will be charged back to the original form of payment used for purchase.

Customer is responsible for shipping charges when making returns and shipping/handling fees of original purchase is non-refundable.

All sale items are final purchases.

Help

Give us a shout if you have any other questions and/or concerns.

Email: help@example.com

Phone: +1 (23) 456 789

Categories : Best selling products, New products

Description

FEATURES

Ultra Lightweight
Low friction 2-stage Orbital ball bearing system
Highest working load in its class
Low profile and compact
High performance cleating
Composite C-Cleat and fairlead
Convert to a becket version by adding a Dyneema® link

Lightweight

Kilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world’s lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimises the mass of the inactive return race and hub.

Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.

Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block.

Highest working load in its class

The orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximises load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.
The floating sheave and bearing system is supported by a fibre-reinforced load frame. The design was computer modelled to be stress optimised. User Instructions
For comprehensive details including user instructions, and for spare part tables, and fastener sizes view in various languages using the following links BB & RT OrbitBlock™ User Instructions (English), BB & RT OrbitBlock™ User Instructions (French), BB & RT OrbitBlock™ User Instructions (German)

Dyneema link specialties

To gain peak performance, we engineered out the heavy steel load straps, head post, shackle, full-length fasteners, and cleating accessories. Through extensive research and development, we replaced virtually all metal components with high-tech polymers and fibre equivalents

The Dyneema Link is produced from FSE Robline SK75 fibre, which is 10 times stronger and lighter than steel, and provides the final connection from the block to the load point.

The flexible Dyneema Link provides controlled rotation and 0° or 90° orientation. It connects directly to the head of the block rather than to an intermediate head post. This reduces weight and gives the lowest possible profile while allowing full articulation. Beckets have been carefully designed to minimise height

It is easily fitted and is retained securely by a moulded retainer clip. The flexible link can be left with one end attached to the block when fitting - no more lost shackle pins

The system is compatible with Dyneema Spectra strops, webbing and carbon connection points - much more so than steel loop tops or shackles.

High performance cleating

Both Ronstan BB and RT Orbit Blocks™ feature strong, lightweight fibre-reinforced cleat arms. They have a wide range of adjustment and calibration marks, perfect for selecting your preferred cleating angle settings. The race-proven carbon-fibre reinforced Ronstan C-Cleat give secure rope holding with low entry and exit efforts, and are fitted with fairleads for fast action from any angle.

Sheave Ø 40 + 22 mm

Max. Rope Ø 9 mm

Max. Cable Ø - mm

Pin Ø - mm

M.W.L. 325 kg

B. L. 700 kg

Weight 108 g
