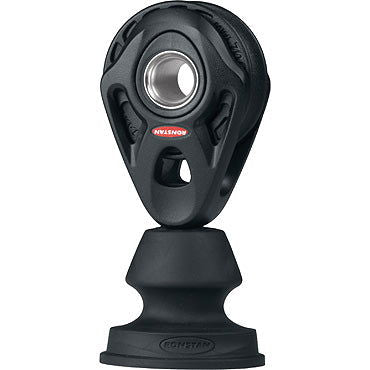

RF44140

$112.61

FEATURES High dynamic and static load capacity Efficient 2-stage bearing system Ball bearings to counteract side thrust loads Class leading performance and sleek, contemporary styling Durable aluminium alloy cheek plates Central hub can be used as a becket take-off or tie-up point, Max 11.5mm line Features a strong cast padeye...

Dresses Size Chart

Dress Size Chart (Inch)
DRESSES
SIZE IN INCHES
SIZE US / CAN BUST WAIST HIPS
XS 0 31"-32" 24"-25" 34"-35"
S 2-4 33"-34" 26"-27" 36"-37"
M 6-8 35"-36" 28"-29" 38"-39"
L 10-12 37"-39" 30"-32" 40"-42"
XL 14 40"-42" 33"-35" 43"-45"
Dress Size Chart (cm)
DRESSES
SIZE IN CM
SIZE US / CAN BUST WAIST HIPS
XS 0 78.7-81.2 60.9-63.5 86.3-88.9
S 2-4 83.8-86.3 66-68.5 91.4-93.9
M 6-8 88.9-91.4 71.1-73.6 96.5-99
L 10-12 93.9-99 76.2-81.2 101.6-106.6
XL 14 101.6-106.6 81.2-88.9 109.2-114.3

Swimwear Size Chart

Dress Size Chart (Inch)
SWIMWEAR
SIZE IN INCHES
SIZE US / CAN BUST WAIST HIPS
XS 0 31"-32" 24"-25" 33"-34"
S 2 33"-34" 26"-27" 35"-37"
M 4 35"-36" 28"-29" 37"-38"
L 6 37"-39" 30"-32" 39"-41"
XL 8 40"-42" 33"-35" 42"-44"

Shoes Size Chart

US EURO UK AUS JAPAN CHINA
5 35-36 3 3.5 21.5 35
5.5 36 3.5 4 22 35.5
6 36-37 4 4.5 22.5 36
6.5 37 4.5 5 23 36.5
7 37-38 5 5.5 23.5 37
7.5 38 5.5 6 24 37.5
8 38-39 6 6.5 24.5 38
8.5 39 6.5 7 25 38.5
9 39-40 7 7.5 25.5 39
9.5 40 7.5 8 26 39.5
10 40-41 8 8.5 26.5 40
11 41-42 9 9.5 27.5 41

Delivery

    All orders shipped with UPS Express.

    Always free shipping for orders over US $250.

    All orders are shipped with a UPS tracking number.

Returns

    Items returned within 14 days of their original shipment date in same as new condition will be eligible for a full refund or store credit.

    Refunds will be charged back to the original form of payment used for purchase.

    Customer is responsible for shipping charges when making returns and shipping/handling fees of original purchase is non-refundable.

    All sale items are final purchases.

Help

Give us a shout if you have any other questions and/or concerns.

Email:

Phone: +1 (23) 456 789

Ask a Question

FEATURES

  • High dynamic and static load capacity
  • Efficient 2-stage bearing system
  • Ball bearings to counteract side thrust loads
  • Class leading performance and sleek, contemporary styling
  • Durable aluminium alloy cheek plates
  • Central hub can be used as a becket take-off or tie-up point, Max 11.5mm line
  • Features a strong cast padeye base with a swivel head post to allow full rotation and articulation

    Core Blocks™ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.



    Universal Bearing -

    Dynamic and high static load performance

    The Ronstan Universal Bearing incorporates our proven 2-stage bearing system

    Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.

    Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.

    Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn’t perfect. Particularly important for cheek blocks.

    Alloy cheek plates

    Block cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings.  Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear.




    Sheave Ø 45 mm
    Max. Rope Ø 12 mm
    Max. Cable Ø mm
    Pin Ø - mm
    M.W.L. 700 kg
    B. L. 1400 kg
    Weight 151 g
